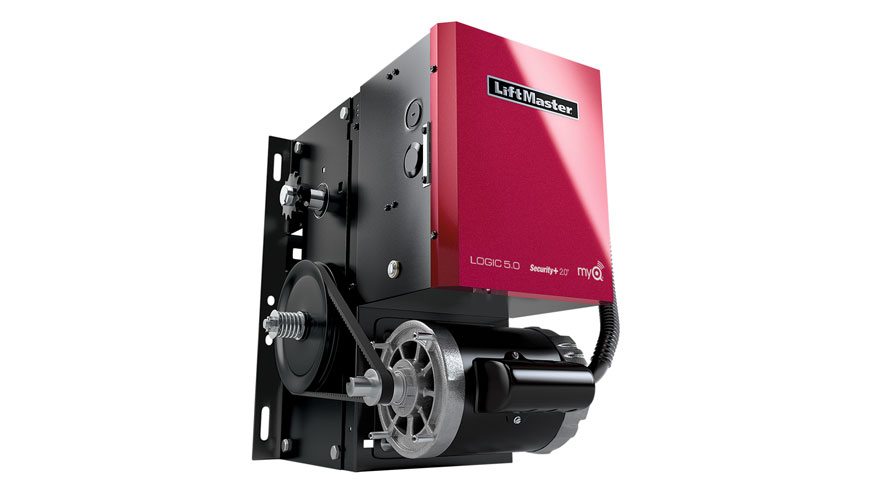

DJ – Door Lock Jackshaft Operator – Logic 5.0

Door Lock Jackshaft Operator - Logic 5.0

For shopping malls and cafeterias. Includes floor-level chain hoist for manual lifting of smaller/lighter doors/grilles. Rated duty cycle: 25 per hour; Up to 90 cycles per day. Internal doorlock sensor prevents damage by restricting door activation while door is locked. Wall or hood mounts for rolling doors/grilles and sectional overhead doors with vertical high lift.

Business Connectivity

Monitor and Control

myQ® Technology enables monitoring and control of the facility operators through a mobile app.

Real-time alerts

Indicate the status of doors via email or push notifications.



Business Safety and Security

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.

Security+ 2.0®

Safeguard facility access with Security + 2.0 technology, opening for registered devices only.

Commercial Power

Multiple Power Options

Available in 1/2, and 3/4 HP

Dual Voltage Connections

Single-phase: 115V and 230V
3-phase:  208V, 230V and 460V
Discrete model:  575V

Customizable Voltage

To meet job requirements
