H – Hoist Operator – Logic 5.0

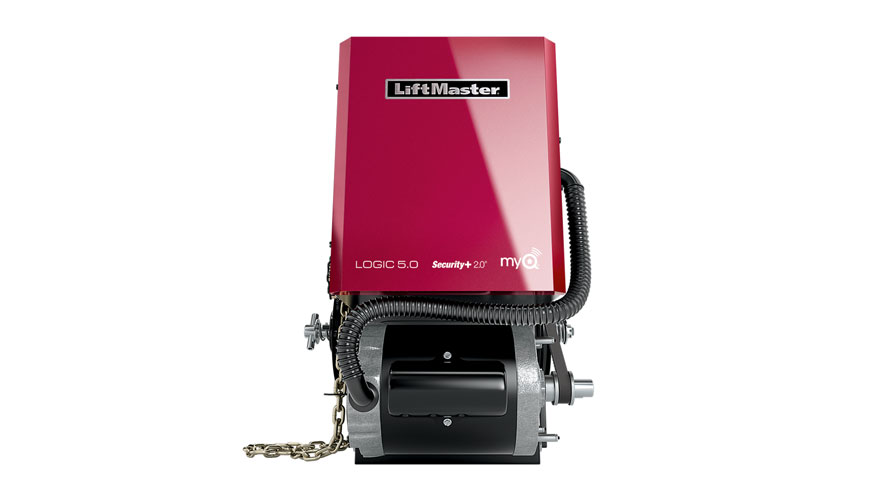

Hoist Operator - Logic 5.0
Optimal for industrial applications with larger sectional overhead doors.
Rated duty cycle: 25 per hour; Up to 90 cycles per day.
Side mounts to the wall for vertical or high-lift doors.
Rolling doors and grilles. Wall or hood mounts.
Monitor and Control
myQ® Technology enables monitoring and control of the facility operators through a mobile app.
Real-time alerts
Indicate the status of doors via email or push notifications.
Safety Standards
Meets UL 325 Safety Standards.
Commercial Safety Sensors
Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
Timer to Close
Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.
Security+ 2.0®
Safeguard facility access with Security + 2.0 technology, opening for registered devices only.
Multiple Power Options
Available in 1/3, 1/2, 3/4, and 1 HP
Dual Voltage Connections
Single-phase: 115V and 230V
3-phase: 208V, 230V and 460V
Discrete model: 575V
Customizable Voltage
To meet job requirements
